Hypothermia for perinatal asphyxial encephalopathy

DOI: https://doi.org/10.4414/smw.2011.13145

Introduction

Perinatal asphyxial encephalopathy is a clinically defined syndrome of disturbed neurologic function in the earliest days after birth in infancy, manifested by difficulty with initiating and maintaining respiration, depression of muscle tone and reflexes, subnormal level of consciousness and often seizures [1]. Perinatal asphyxial encephalopathy is a major cause of death and disability worldwide occurring in 1–2 per 1000 births in the developed world [2, 3]; in low resource settings, the incidence is much higher [4, 5]. Moderate to severe encephalopathy is associated with high mortality and morbidity rates; sequelae of early brain injury require significant resources.

Experimental studies have shown that neural damage after hypoxia-ischaemia is delayed for several hours and that prolonged, moderate hypothermia reduces cerebral injury and improves neurological outcome [6–8]. Clinical studies have shown a reduction in mortality and long-term neurodevelopmental disability at 12 to 24 months of age with the most benefit seen in moderately encephalopathic infants [9–14]. Meta-analyses of the trials of therapeutic hypothermia [11, 15, 16] consistently show that therapeutic hypothermia increases survival with normal neurological function (pooled risk ratio of 1.53) with a number needed to treat of 8 (95% confidence interval (CI) 5–17), and in survivors it reduces the rates of severe disability and cerebral palsy [17, 18]. The most recent randomised controlled hypothermia trial (Neo.nEURO.network RCT) reported a number needed to treat of 4 [95% CI: 3–9]). Furthermore, therapeutic hypothermia also had a statistically significant protective effect in the group with severe encephalopathy (n = 77; p = .005; odds ratio: 0.17 [95% CI: 0.05–0.57]) [19].

Following the completion of the recruitment phase of the Whole Body Hypothermia for the Treatment of Perinatal Asphyxial Encephalopathy (TOBY) trial in December 2006, therapeutic hypothermia continued to be offered as a therapy outside of any clinical trial in some UK units. A UK national registry was set up to provide surveillance of the use of therapeutic hypothermia in clinical practice and to identify possible complications of this therapy outside a clinical trial [13]. Even before the publication of the UK TOBY trial [20], access to hypothermia was widespread in the UK with more than half of the responders of a UK survey considering therapeutic hypothermia effective [20]. In the US in 2006, the American Academy of Paediatrics Committee on Fetus and Newborn stated that now that clinical trials had stopped recruiting, registries of infants with perinatal asphyxial encephalopathy should be established to facilitate data collection regarding diagnoses, treatments and outcomes [12]. Following the publication of the TOBY trial, the National Institute for Health and Clinical Excellence (NICE) endorsed Therapeutic Hypothermia with Intracorporeal Temperature Monitoring for Hypoxic Perinatal Brain Injury in 2010. NICE guidelines specify that therapeutic hypothermia should be performed “in carefully selected infants”, “in units experienced in the care of severely asphyxiated infants” who “enter details of infants undergoing cooling into the UK TOBY cooling registry” (see website: http://www.nice.org.uk/nicemedia/live/11315/48809/48809.pdf).

The aim of this Swiss study was to undertake a survey among neonatologists and paediatric intensive care specialists within Switzerland to (i) evaluate opinion regarding the use of therapeutic hypothermia, (ii) assess current clinical management of infants with perinatal asphyxial encephalopathy and (iii) assess opinion of the need for a national registry.

Methods

The Swiss Neonatal Network & Follow-Up Group is a non-profit voluntary collaboration of health care professionals dedicated to improving the quality and safety of medical care for high-risk newborn infants and their families. The Network consists of all neonatal Intensive Care Units (NICUs), Special Baby Care Units (SBCU) and most Neuropaediatric Centres in Switzerland under the auspices of the Swiss Society of Neonatology. A list of heads of departments of neonatal and paediatric intensive care units was obtained from the Swiss Neonatal Network and in May 2009, a 32 item web-based questionnaire with focus on clinical management of infants with perinatal asphyxial encephalopathy was sent out to the heads of departments of 18 neonatal units in Switzerland (see appendix 1 http://www.smw.ch/fileadmin/smw/pdf/appendix/smw.2011.13145_Appendix_1.pdf ). An additional 25 item questionnaire with detailed questions on follow-up procedures was sent in March 2010 to the same neonatal units (see appendix 2 http://www.smw.ch/fileadmin/smw/pdf/appendix/smw.2011.13145_Appendix_2.pdf ). Reminders were sent four weeks later.

In Switzerland, neonatal units are divided into two main categories. Those which initially stabilise the infants and then transfer the infants to regional centres for further care, and those which provide neonatal intensive care beyond the initial stabilisation period.

Results

The response rates of the first and second questionnaires were 67% (12/18) and 94% (17/18), respectively. Of the responding neonatal units, 11/17 provided mechanical ventilation beyond the stabilisation period. Of the non-responders, all were units not providing mechanical ventilation beyond the stabilisation period. The hospitals’ delivery rate was 1000–3000/year in 15/17 (88%) of the responding units, 3000–5000/year in 1/17 (6%) units and one unit has no inborn infants. Almost half of the responding units (8/17) had a birth rate of 5000–10000/year within their catchment area, 4/17 (24%) had a birth rate of 3000–5000/year within their catchment area and 3/17 (18%) units of 1000–3000/year, and two units did not answer this question.

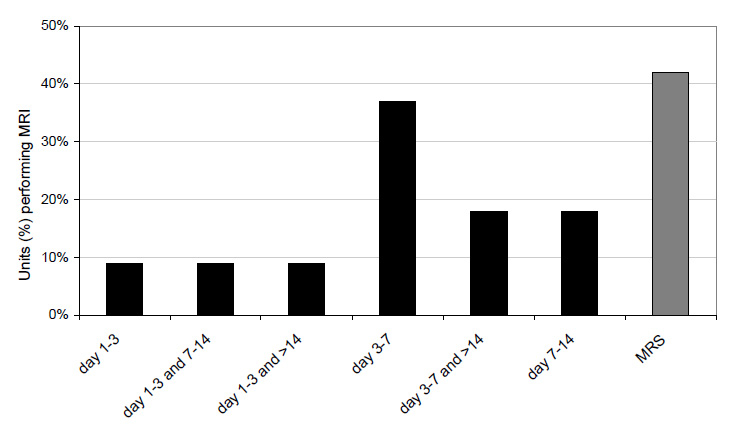

Figure 1

Timing of MRI in the units (n = 10) that routinely perform MRI in all infants with perinatal encephalopathy. MRS: Magnetic Resonance Spectroscopy.

A total of 88% (15/17) of the responding units treat infants with perinatal asphyxial encephalopathy. The remaining two units transfer any infant with perinatal asphyxial encephalopathy to their regional centre for further care. Of those units treating such infants, 73% (11/15) provided therapeutic hypothermia on their unit and 27% (4/15) of the units refered severely sick infants to their regional centre for further care and/or cooling. Units that do not offer therapeutic hypothermia are those which do not provide mechanical ventilation beyond the initial stabilisation.

In the first questionnaire, the majority of responders felt that therapeutic hypothermia is effective; only one centre felt more evidence is necessary to offer therapeutic hypothermia. The second questionnaire showed that during the interim period, 5/17 (30%) of heads of department were influenced by the UK TOBY trial results, published in 2009, and all of the responder considered therapeutic hypothermia as an effective therapy. None of the neonatal units have taken part in trials for therapeutic hypothermia. All responders felt it important and necessary to build up a national registry of infants with perinatal asphyxial encephalopathy to facilitate data collection with focus on clinical management, adverse events and follow-up data.

Cooling on transfer

If transport is needed, 77% (13/17) initiated cooling during transport and cooling was always done passively during transport.

Hypothermia

Eleven of the 17 (65%) responding units provided therapeutic hypothermia. All units providing therapeutic hypothermia performed whole body cooling. A total of 82% (8/11) of units that offer therapeutic hypothermia aimed to cool passively. If the target temperature cannot be achieved or maintained by passive cooling, then a cooling mattress device was used in 54% (6/11) of the units to reach target temperature. The duration of cooling was 72 hours in all centres. Cooling details and clinical management during the cooling period are found in table 1.

Neuromonitoring

Neurological examinations to assess the severity of the perinatal asphyxial encephalopathy was done in 94% (16/17) of all responding units using the Sarnat Score [21] and in one unit (6%) using both Thompson [22] and Sarnat Score.

All units providing therapeutic hypothermia therapy (11/17) used amplitude integrated EEG (aEEG) to monitor brain function. Seven units (64%) monitored brain function with aEEG during the cooling and re-warming period, one unit (9%) was intermittently monitoring with aEEG, two units (18%) monitored during cooling period only and one (9%) monitored depending on aEEG availability. Eight seven percent of the units were using BrainZ monitor and 13% the Olympic 6000 monitor to record aEEG. All responding units had access to neonatal EEG, however 31% of the units only operated during office hours. A total of 75% of the units which treat infants with perinatal asphyxial encephalopathy requested EEG between day 1–3 and 25% of the units between day 3 and 7.

Fifty-eight percent of the units treating infants with perinatal asphyxial encephalopathy obtained neuroimaging within the first six hours after birth: all units would use cranial ultrasound (cUS). If additional imaging was used within the first six hours after birth, then MRI was done in 29% of the units and CT in 14% of the units.

A total of 67% (10/15) of the units treating such infants performed brain MRI routinely in all infants at any time during hospitalisation. Timing of MRI is shown in figure 1. Ninety two percent of all responders used phenobarbital as first line treatment for seizures and phenytoin as 2nd line therapy in all units.

Neurodevelopmental assessment

Thirteen of the 17 responding units answered the question about neurodevelopmental follow-up (FU) assessment. These centres had different FU programmes for infants with perinatal asphyxial encephalopathy. The details of FU assessment are shown in table 2.

Discussion

The birth rate in Switzerland is 10 per 1000 population; the estimated number of infants with perinatal asphyxial encephalopathy in Switzerland is thus ~76 infants per year. A recent meta-analysis of the three large hypothermia trials, showed that moderate hypothermia increased survival with normal neurological function with a number needed to treat of eight (95% CI 5 to 17) and in survivors it reduced the rates of severe disability, cerebral palsy and the mental and psychomotor developmental index to less than 70 [18].

All neonatologists taking part in this survey believed that therapeutic hypothermia is effective and offer hypothermia to infants with perinatal asphyxial encephalopathy even when transport to a regional centre is necessary. However, it became evident in these surveys that infants with perinatal asphyxial encephalopathy in Switzerland are managed differently depending on where they are treated. This information emphasises the need for the establishment of national guidelines for the clinical management of infants with perinatal asphyxial encephalopathy and of a hypothermia protocol to ensure best clinical practice, treatment and FU for such infants. Furthermore, a national registry is mandatory to identify adverse events, to enable systematic follow-up of survivors and to facilitate further clinical trials of neuroprotection following asphyxia.

Two methods of cooling have been evaluated: whole body cooling and selective head cooling with mild systemic hypothermia. Whole body cooling relies on the core and deep brain temperature being similar, while selective head cooling leads to temperature gradients within the brain. Techniques to provide whole body cooling are water mattress devices (servo controlled or manual and semi-automated), servo-controlled fans [23], water bottles [24], refrigerated gel packs with passive cooling at ambient temperature with cessation of active warming and the radiant warmer turned off [25], and phase-changing material mattresses [26]. Selective head cooling techniques include the Cool-Cap system [19] and ice-water-filled rubber gloves or ice packs applied to the head.

Unlike the large randomised controlled trials of cooling, in Switzerland 82% (8/11) of the cooling centres aimed to cool passively. Passive cooling is done by removing external heating devices such as incubators and radiant heat sources allowing the baby to naturally cool down. Fifty-four percent of the cooling centres used additional cooling devices to induce and maintain hypothermia during 72 hours if passive cooling does not succeed. To shorten the time between birth and the start of cooling, most transport teams of the responding centres initiated cooling already during transfer.

Cerebral function monitoring using the aEEG has provided an efficient tool for identifying infants with moderate or severe encephalopathy or seizures [27, 28] and helps to predict outcome [28]. A total of 66% of the responding centres treating infants with perinatal asphyxial encephalopathy and all centres providing therapeutic hypothermia used aEEG to monitor cerebral function, although not consistently during the cooling period and re-warming phase. It is important to continuously monitor brain function during the cooling and re-warming period as seizures may not be clinically apparent. However, if such monitoring is used to select which infants should be treated with therapeutic hypothermia, knowledge of artefacts which alter the aEEG trace is important [29].

Fifty-eight percent of the units treating infants with perinatal asphyxial encephalopathy acquired early imaging, always using cranial ultrasound; if additional early imaging was done then it was mainly done by MRI (29%) or by CT (14%). cUS is important to document any established injury and to exclude brain malformation on admission [30, 31]. Furthermore, it helps to show the evolution of injury over time and in combination with Doppler sonography helps to predict outcome [30, 32, 33]. Severely abnormal cUS findings were highly predictive of an adverse outcome at two years of age in infants with perinatal asphyxial encephalopathy; however, normal to mildly abnormal findings were not a strong predictor for favourable outcomes [30]. MRI is the best imaging modality to detect perinatally acquired cerebral lesions, and the pattern and severity of lesion are predictive of outcome [34–37]. The timing of scanning is important as the evolution of injury seen on MRI progresses over several days and the severity of injury might be underestimated during the first few days after birth [38]. Rutherford et al published the imaging findings of the infants of the UK TOBY trial showing that MRI at a median of 8 days accurately predicted outcome at 18 months in cooled and non-cooled infants [39]. Cooling was associated with a significant reduction in abnormalities in the basal ganglia, thalami and white matter, and the prognostic accuracy of MRI following perinatal asphyxial encephalopathy was not altered by therapeutic hypothermia [39]. A recent meta-analysis reported deep gray matter lactate/NAA acquired with MRS during the neonatal period to be the most accurate quantitative MR biomarker for prediction of neurodevelopmental outcome in infants with perinatal asphyxial encephalopathy [40]. In this survey, 10 responders (59%) requested brain MRI in all infants with perinatal asphyxial encephalopathy and about half of those (42%) performed MR spectroscopy. It is important to obtain brain MRI in all infants treated with therapeutic hypothermia and if possible the MR sequences should be standardised.

As infants with perinatal asphyxial encephalopathy are a high risk population for motor and cognitive impairment [41–45] and since, even in the absence of motor disability, long term cognitive deficits such as language and memory deficits can occur, close and long term neurodevelopmental assessment should be performed [42, 46]. A total of 87% (13/15) units treating infants with perinatal asphyxial encephalopathy in Switzerland have established follow-up programmes for such infants.

In a systematic review of 13 published clinical cooling trials, an increased risk of arrhythmia with a number to treat to harm of 25 (95% CI 16 to 100) and thrombocytopenia with a number to treat to harm of 10 (95% CI 5 to 33) in the hypothermia group was reported [17]. However, these conditions could be corrected with appropriate clinical care [17]. Azzopardi et al reported how cooling is managed outside of clinical trials in the UK. Reported clinical complications such as coagulopathy and pulmonary haemorrhage were thought to be due to asphyxia or other conditions than hypothermia [13]. National registries give the opportunity to record and monitor adverse events and to help ensure that therapeutic hypothermia is applied effectively and safely in clinical practice.

Conclusion

In Switzerland, access to hypothermia is widespread and Swiss neonatologists believe that therapeutic hypothermia is effective. National cooling and follow-up protocols are needed to standardise management of infants with perinatal asphyxial encephalopathy to provide safe cooling, appropriate monitoring, imaging and follow-up assessment. A national register is needed to collect data on diagnosis, treatment, adverse events and neurodevelopmental outcome.

We would like to acknowledge the following centers for participating in the survey: Aarau: Kantonsspital Aarau, Kinderklinik (Georg Zeilinger); Baden: Kantonsspital Baden, Abteilung für Neonatologie (Urs Lässer); Basel: Universitäts-Kinderspital beider Basel, Abteilung für Neonatologie (René Glanzmann); Bern: Frauenklinik und Medizinische Kinderklinik, Abteilung für Neonatologie (Matthias Nelle); Bern: Medizinische Universitäts-Kinderklinik Inselspital Bern, Abteilung für pädiatrische Intensivbehandlung (Karin Daetwyler); Biel: Spitalzentrum Biel, Kinderklinik Wildermeth (Avihay Blumberg); Chur: Rätisches Kantons- und Regionalspital, Kinderklinik (Brigitte Scharrer); Genf: Département de l’enfant et de l’adolescent, Service de néonatologie et de soins intensifs, (Gregory Lodygensky); Lausanne: CHUV, Département de pédiatrie, Service de Néonatologie (Anita Truttman); Luzern: Kinderspital Luzern, NeoIPS (Thomas M. Berger); Neuchatel: Département de pédiatrie (Bernhard Laubscher); Sion: Centre Hospitalier du Centre du Valais, Département médico-chirurgical de pédiatrie, (René Tabin); St. Gallen: Kantonsspital St. Gallen, Klinik für Geburtshilfe und Gynäkologie (John Micaleff); Ostschweizer Kinderspital, Intensivpflege- und Frühgeburtenstation (John P. Micallef); Winterthur: Kantonsspital Winterthur, Klink für Neonatologie (Urs Zimmermann); Zürich: USZ, Klinik für Neonatologie, Department Frauenheilkunde (Hans-Ulrich Bucher); Zürich: Spital Zollikerberg, Neonatologie (Marion Mönkhoff); Zürich, Triemli Spital, Neonatologie (Maren Tomaske).

Appendix

First and second questionnaire are provided in the appendix.

References

  1 Nelson KB, Leviton A. How much of neonatal encephalopathy is due to birth asphyxia? Am J Dis Child. 1991;145(11):1325–31.

  2 Marlow N, Budge H. Prevalence, causes, and outcome at 2 years of age of newborn encephalopathy. Arch Dis Child Fetal Neonatal Ed. 2005;90(3):F193–4.

  3 Pierrat V, Haouari N, Liska A, Thomas D, Subtil D, Truffert P. Prevalence, causes, and outcome at 2 years of age of newborn encephalopathy: population based study. Arch Dis Child Fetal Neonatal Ed. 2005;90(3):F257–61.

  4 Ellis M, Manandhar DS, Manandhar N, Wyatt J, Bolam AJ, Costello AM. Stillbirths and neonatal encephalopathy in Kathmandu, Nepal: an estimate of the contribution of birth asphyxia to perinatal mortality in a low-income urban population. Paediatr Perinat Epidemiol. 2000;14(1):39–52.

  5 Black RE, Cousens S, Johnson HL, Lawn JE, Rudan I, Bassani DG, et al. Global, regional, and national causes of child mortality in 2008: a systematic analysis. Lancet. 2010 May 11.

  6 Amess PN, Penrice J, Cady EB, Lorek A, Wylezinska M, Cooper CE, et al. Mild hypothermia after severe transient hypoxia-ischemia reduces the delayed rise in cerebral lactate in the newborn piglet. Pediatr Res. 1997;41(6):803–8.

  7 Gunn AJ, Gunn TR, de Haan HH, Williams CE, Gluckman PD. Dramatic neuronal rescue with prolonged selective head cooling after ischemia in fetal lambs. J Clin Invest. 1997;99(2):248–56.

  8 Thoresen M, Penrice J, Lorek A, Cady EB, Wylezinska M, Kirkbride V, et al. Mild hypothermia after severe transient hypoxia-ischemia ameliorates delayed cerebral energy failure in the newborn piglet. Pediatr Res. 1995;37(5):667–70.

  9 Gunn AJ, Gluckman PD, Gunn TR. Selective head cooling in newborn infants after perinatal asphyxia: a safety study. Pediatrics. 1998;102(4 Pt 1):885–92.

10 Eicher DJ, Wagner CL, Katikaneni LP, Hulsey TC, Bass WT, Kaufman DA, et al. Moderate hypothermia in neonatal encephalopathy: efficacy outcomes. Pediatr Neurol. 2005;32(1):11–7.

11 Shankaran S, Laptook AR, Ehrenkranz RA, Tyson JE, McDonald SA, Donovan EF, et al. Whole-body hypothermia for neonates with hypoxic-ischemic encephalopathy. N Engl J Med. 2005;353(15):1574–84.

12 Blackmon LR, Stark AR. Hypothermia: a neuroprotective therapy for neonatal hypoxic-ischemic encephalopathy. Pediatrics. 2006;117(3):942–8.

13 Azzopardi D, Strohm B, Edwards AD, Halliday H, Juszczak E, Levene M, et al. Treatment of asphyxiated newborns with moderate hypothermia in routine clinical practice: how cooling is managed in the UK outside a clinical trial. Arch Dis Child Fetal Neonatal Ed. 2009;94(4):F260–4.

14 Zhou WH, Cheng GQ, Shao XM, Liu XZ, Shan RB, Zhuang DY, et al. Selective Head Cooling with Mild Systemic Hypothermia After Neonatal Hypoxic-Ischemic Encephalopathy: A Multicenter Randomized Controlled Trial in China. J Pediatr. 2010 May 18.

15 Gluckman PD, Wyatt JS, Azzopardi D, Ballard R, Edwards AD, Ferriero DM, et al. Selective head cooling with mild systemic hypothermia after neonatal encephalopathy: multicentre randomised trial. Lancet. 2005;365(9460):663–70.

16 Azzopardi DV, Strohm B, Edwards AD, Dyet L, Halliday HL, Juszczak E, et al. Moderate hypothermia to treat perinatal asphyxial encephalopathy. N Engl J Med. 2009;361(14):1349–58.

17 Shah PS. Hypothermia: a systematic review and meta-analysis of clinical trials. Semin Fetal Neonatal Med. 2010 Mar 6.

18 Edwards AD, Brocklehurst P, Gunn AJ, Halliday H, Juszczak E, Levene M, et al. Neurological outcomes at 18 months of age after moderate hypothermia for perinatal hypoxic ischaemic encephalopathy: synthesis and meta-analysis of trial data. BMJ. 2010;340:c363.

19 Simbruner G, Mittal RA, Rohlmann F, Muche R. Systemic hypothermia after neonatal encephalopathy: outcomes of neo.nEURO.network RCT. Pediatrics. 2010;126(4):e771-8.

20 Kapetanakis A, Azzopardi D, Wyatt J, Robertson NJ. Therapeutic hypothermia for neonatal encephalopathy: a UK survey of opinion, practice and neuro-investigation at the end of 2007. Acta Paediatr. 2009;98(4):631–5.

21 Sarnat HB, Sarnat MS. Neonatal encephalopathy following fetal distress. A clinical and electroencephalographic study. Arch Neurol. 1976;33(10):696–705.

22 Thompson CM, Puterman AS, Linley LL, Hann FM, van der Elst CW, Molteno CD, et al. The value of a scoring system for hypoxic ischaemic encephalopathy in predicting neurodevelopmental outcome. Acta Paediatr. 1997;86(7):757–61.

23 Horn A, Thompson C, Woods D, Nel A, Bekker A, Rhoda N, et al. Induced hypothermia for infants with hypoxic- ischemic encephalopathy using a servo-controlled fan: an exploratory pilot study. Pediatrics. 2009;123(6):e1090–8.

24 Robertson NJ, Nakakeeto M, Hagmann C, Cowan FM, Acolet D, Iwata O, et al. Therapeutic hypothermia for birth asphyxia in low-resource settings: a pilot randomised controlled trial. Lancet. 2008;372(9641):801–3.

25 Jabobs S, Stewart M, Inder T, Doyle L, Morley C, editors. Feasibility of a Pragmatic Randomised Controlled Trial of Whole Body Cooling for Term Newborns with Hypoxic Ischaemic Encephalopathy. Hot Topics In Neonatology; 2002; Washington, DC: Abbott Laboratories Inc.

26 Thayyil S, Ayer M, Guhan B. Whole body cooling using phase changing material in neonatal encephalopathy: a pilot randomised control trial. EPAS 2010.

27 Hellstrom-Westas L, Rosen I. Continuous brain-function monitoring: state of the art in clinical practice. Semin Fetal Neonatal Med. 2006;11(6):503–11.

28 Azzopardi D, Robertson NJ, Cowan FM, Rutherford MA, Rampling M, Edwards AD. Pilot study of treatment with whole body hypothermia for neonatal encephalopathy. Pediatrics. 2000;106(4):684–94.

29 Hagmann CF, Robertson NJ, Azzopardi D. Artifacts on electroencephalograms may influence the amplitude-integrated EEG classification: a qualitative analysis in neonatal encephalopathy. Pediatrics. 2006;118(6):2552–4.

30 Leijser LM, Vein AA, Liauw L, Strauss T, Veen S, Wezel-Meijler G. Prediction of short-term neurological outcome in full-term neonates with hypoxic-ischaemic encephalopathy based on combined use of electroencephalogram and neuro-imaging. Neuropediatrics. 2007;38(5):219–27.

31 Leijser LM, de Vries LS, Cowan FM. Using cerebral ultrasound effectively in the newborn infant. Early Hum Dev. 2006;82(12):827–35.

32 Rutherford MA, Pennock JM, Dubowitz LM. Cranial ultrasound and magnetic resonance imaging in hypoxic-ischaemic encephalopathy: a comparison with outcome. Dev Med Child Neurol. 1994;36(9):813–25.

33 Eken P, Toet MC, Groenendaal F, de Vries LS. Predictive value of early neuroimaging, pulsed Doppler and neurophysiology in full term infants with hypoxic-ischaemic encephalopathy. Arch Dis Child Fetal Neonatal Ed. 1995;73(2):F75–80.

34 Rutherford M, Pennock J, Schwieso J, Cowan F, Dubowitz L. Hypoxic-ischaemic encephalopathy: early and late magnetic resonance imaging findings in relation to outcome. Arch Dis Child Fetal Neonatal Ed. 1996;75(3):F145–51.

35 Rutherford MA, Pennock JM, Counsell SJ, Mercuri E, Cowan FM, Dubowitz LM, et al. Abnormal magnetic resonance signal in the internal capsule predicts poor neurodevelopmental outcome in infants with hypoxic-ischemic encephalopathy. Pediatrics. 1998;102(2 Pt 1):323–8.

36 Miller SP, Ramaswamy V, Michelson D, Barkovich AJ, Holshouser B, Wycliffe N, et al. Patterns of brain injury in term neonatal encephalopathy. J Pediatr. 2005;146(4):453–60.

37 Miller SP, Newton N, Ferriero DM, Partridge JC, Glidden DV, Barnwell A, et al. Predictors of 30-month outcome after perinatal depression: role of proton MRS and socioeconomic factors. Pediatr Res. 2002;52(1):71–7.

38 Rutherford MA, Pennock JM, Schwieso JE, Cowan FM, Dubowitz LM. Hypoxic ischaemic encephalopathy: early magnetic resonance imaging findings and their evolution. Neuropediatrics. 1995;26(4):183–91.

39 Rutherford M, Ramenghi LA, Edwards AD, Brocklehurst P, Halliday H, Levene M, et al. Assessment of brain tissue injury after moderate hypothermia in neonates with hypoxic-ischaemic encephalopathy: a nested substudy of a randomised controlled trial. Lancet Neurol. 2010;9(1):39–45.

40 Thayyil S, Chandrasekaran M, Taylor A, Bainbridge A, Cady EB, Chong WK, et al. Cerebral magnetic resonance biomarkers in neonatal encephalopathy: a meta-analysis. Pediatrics;125(2):e382–95.

41 Cowan F. Outcome after intrapartum asphyxia in term infants. Semin Neonatol. 2000;5(2):127–40.

42 Gonzalez FF, Miller SP. Does perinatal asphyxia impair cognitive function without cerebral palsy? Arch Dis Child Fetal Neonatal Ed. 2006;91(6):F454-9.

43 Dixon G, Badawi N, Kurinczuk JJ, Keogh JM, Silburn SR, Zubrick SR, et al. Early developmental outcomes after newborn encephalopathy. Pediatrics. 2002;109(1):26–33.

44 Marston L, Peacock JL, Yu K, Brocklehurst P, Calvert SA, Greenough A, et al. Comparing methods of analysing datasets with small clusters: case studies using four paediatric datasets. Paediatr Perinat Epidemiol. 2009;23(4):380–92.

45 Pin TW, Eldridge B, Galea MP. A review of developmental outcomes of term infants with post-aphyxia neonatal encephalopathy. Eur J Paediatr Neurol. 2009;13(3):224–34.

46 Rennie JM, Hagmann CF, Robertson NJ. Outcome after intrapartum hypoxic ischaemia at term. Semin Fetal Neonatal Med. 2007;12(5):398–407.
