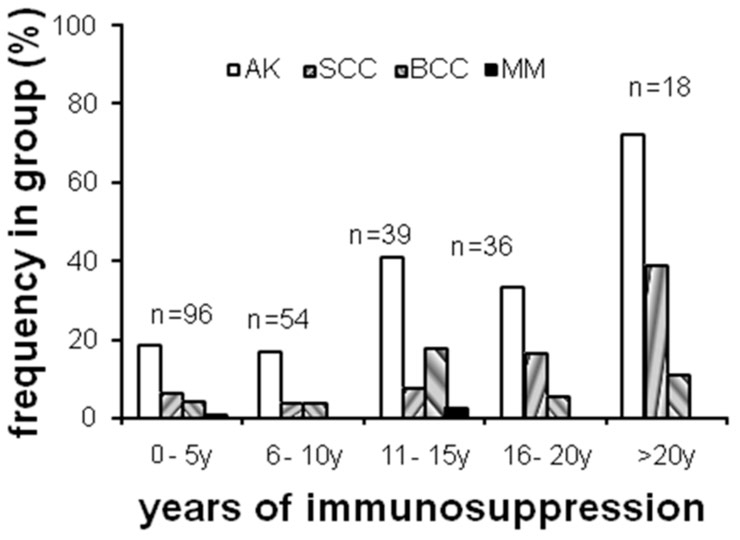

Figure 1
Correlation between years of immunosuppression and development of actinic keratoses (AK), squamous cell carcinomas (SCC), basal cell carcinomas (BCC) and melanoma (MM)
DOI: https://doi.org/10.4414/smw.2010.13036
Renal transplantation is a procedure frequently adopted in the treatment of renal failure which requires, in addition to appropriate surgical techniques, life-long immunosuppressive therapy. More than one million people worldwide carry organ transplants, of which solid kidney transplants represent the majority [1]. Patients’ survival time has steadily lengthened in recent decades as a result of an optimised immunosuppressive regimen preventing transplant rejection, improved treatment of infections and the preferred use of human leukocyte antigen (HLA)-matched kidneys from deceased donors [2–4]. However, one consequence of long-term immunosuppressive therapy is facing dermatologists with increasing numbers of skin cancers in these patients. Follow-up programmes including preventive and surveillance strategies are needed [2, 3]. Ultraviolet radiation represents the major risk factor, as skin tumours appear more frequently in countries with high sun exposure (e.g. Australia) [5] and in sun-exposed areas in patients with a fair skin type. Furthermore, biopsies of squamous cell carcinomas often show features of human papillomavirus infection (HPV), since HPV may also be considered carcinogenic [6]. However, a recent study analysing serological data could not define HPV infections as aetiological factors for SCCs in transplant recipients [7]. The excess of skin cancer in immunosuppressed patients has been attributed to two main pathomechanisms: first, a direct carcinogenic action of these agents [8, 9], and second, impaired eradication of precancerous changes due to permanent immunosuppression [10, 11]. The risk of both systemic cancer and skin cancer in patients who underwent transplantation is 3–4 times higher than in the general population [12]. Skin cancer represents the majority. In Australia some 45% of patients developed skin cancer within 10 years of transplantation [5, 13]. European studies from Ireland, the Netherlands, the UK and Italy reported an incidence of 10–15% [14–17]. Studies from Japan showed a lower incidence [18, 19]. Compared to age- and sex-matched control populations the population-based standardised incidence ratio of skin cancer is increased 65–82-fold for squamous cell carcinomas (SCC), 10-fold for basal cell carcinomas (BCC) and 3.4-fold for melanoma (MM) in organ transplant recipients [14, 15, 20]. The incidence of Kaposi’s sarcoma, which has been related to viral infection, is increased even 84-fold due to immunosuppression in transplant recipients [21–23].
The aim of this study is to investigate the frequency and type of skin cancer as well as to define risk factors for skin cancer in patients receiving immunosuppressive therapy after kidney transplantation. Since there is evidence that certain immunosuppressive substances such as azathioprine [11] have a greater impact on carcinogenesis, we correlated the immunosuppressive regimens with the type and numbers of skin cancer lesions.
The research was conducted in full compliance with ethical principles, including the provisions of the World Medical Association Declaration of Helsinki 2000.
In accordance with internal guidelines of the University of Bern we collected the data of 243 renal transplant recipients in the period January 2002–October 2005 who were on regular follow-up at our hospital. To optimize follow-up of transplant recipients we installed a special dermatological consultation unit at the department of nephrology. This enabled close follow-up of all transplanted patients during their routine nephrological controls at the department of nephrology. Prior to kidney transplantation all patients had been checked by a dermatologist for skin cancers and/or premalignant conditions and treated for evident lesions.
A detailed medical history was recorded and the entire skin of each patient was examined. All clinically evident skin lesions suspect for actinic keratoses (AK), squamous cell carcinoma (SCC), basal cell carcinoma (BCC) or malignant melanoma (MM) were recorded. If the lesion was clinically clearly recognised as AK, treatment was performed without histological confirmation. In all other cases a punch biopsy was evaluated histologically for non-melanocytic lesions and an excision biopsy for lesions suspect for MM.
Two multivariate logistic regression models were applied to investigate the influence of immunosuppressive medication, the duration of treatment, age, sex, and skin type on the incidence of AKs and SCCs respectively. A p-value of <0.05 was considered statistically significant and no correction was done for multiple testing.
The patients’ characteristics are listed in table 1. 243 patients, 154 males (63%) and 89 females (37%), with a mean age of 50.7 years (±13.0, range 19–79) were included in the study. The mean duration of immunosuppression was 9.2 years (±7.3, range <1–34). In general the patients were treated by a combination of immunosuppressive drugs (mean 2.5 drugs, ± 0.6). The majority of patients presented skin types II and III in the Fitzpatrick classification (in 23 patients the skin type was not determined). These patients received various immunosuppressive regimens with a total of 22 different combinations of immunosuppressive medication ranging from monotherapy with cyclosporine to four-drug combination regimen (table 2). To demonstrate the relation of length of immunosuppression to the frequency of skin cancer the patients were assigned to one of five different groups (0–5 yrs, 6–10 yrs, 11–15yrs, 16–20 yrs, >20 yrs) as shown in figure 1.
Figure 1
Correlation between years of immunosuppression and development of actinic keratoses (AK), squamous cell carcinomas (SCC), basal cell carcinomas (BCC) and melanoma (MM)
In 243 patients who underwent systematic examination for skin cancer before and after transplantation we observed a total of 541 AKs and 158 non-melanoma skin cancer (NMSC) (138 SCC, 20 BCC) and 2 malignant melanomas. This results in a BCC to SCC ratio of 1:7. Over time, with the increasing duration of immunosuppression, the number of diagnosed SCC exceeded the number of BCC to an increasingly large extent. Within the first 10 years the incidence of NMSC (SCC and BCC) was 17.8%.
To investigate the distinct clinical parameters influencing the occurrence of AK, BCC, SCC or MM in renal transplant patients, we performed multivariate logistic regression analysis. We found a relationship between the incidence of skin cancers and the clinical parameters such as patients’ age, sex and skin type, as well as time period after transplantation, which is identical to the duration of immunosuppressive treatment (fig. 1). Elderly patients had AK more frequently (odds ratio [OR] 1.11, 95% confidence interval [CI] 1.06–1.15; p <0.0001) and SCC (OR 1.14, CI 1.07–1.22; p <0.0001) than younger patients. Men had AK (OR 0.19, CI 0.08–0.45; p = 0.0002) and SCC (OR 0.25, CI 0.07–0.89; p = 0.0332) more frequently than women. As suspected, the duration of immunosuppressive therapy correlated significantly with the numbers of AKs (OR 1.15, CI 1.08–1.24; p <0.0001) and SCCs (OR 1.16, CI 1.05–1.28; p = 0.0025), and patients with fair skin had more AKs (OR 0.31, CI 0.14–1.24; p <0.0001) and SCCs (OR 0.11, CI 0.02–0.52; p = 0.0054) than darker skinned patients. We observed a sharp increase in AKs and SCCs over time. In patients with more than 10 years’ immunosuppression the frequency of AKs was 41.0% and of SCCs 7.6%. In the group with >20 years’ immunosuppression more than 70% of the patients presented AK and 39% SCC.
Table 3 shows the effect of different parameters on the risk of developing AK and SCC. A highly significant effect is seen for the parameters age, duration of immunosuppression (years after transplantation) and skin type. A significant effect is seen for gender as an independent risk factor and the immunosuppressive drug prednisone. This means that the risk of developing AK and SCC increases in patients with higher age, fair skin and long-term immunosuppressive therapy. Also, the risk is higher in males than in females.
| Table 1Patients’ characteristics. | |
| Patients | 243 |
| Male / female | 154 / 89 |
| Age (years, mean ± SD) | 50.69 (±12.98), Range 19–79 |
| Duration of immunosuppression (years) | 9.24 (±7.32)+ Range 0–34 |
| Number of immunosuppressive drugs | 2.52 (±0.59) + Range 1–4 |
| Skin type | I: 3, II: 149, III: 60, IV: 5, V:3not determined: 23 |
| Table 2Regimens of immunosuppressive therapy. | |||||||
| Immunosuppressive regimen | |||||||
| Monotherapy | Combination | ||||||
| Substance | Patients(n = 7) | 2 Substances | Patients(n = 107) | 3 Substances | Patients(n = 124) | 4 Substances | Patients(n = 5) |
| C | 7 | A T | 1 | A C P | 71 | A C M P | 2 |
| A C | 6 | A P S | 1 | A C P S | 2 | ||
| A P | 20 | A P T | 3 | C M P S | 1 | ||
| C M | 4 | C M P | 42 | ||||
| C P | 70 | C P S | 3 | ||||
| M P | 1 | M P S | 2 | ||||
| M S | 1 | M P T | 1 | ||||
| M T | 1 | P S T | 1 | ||||
| P S | 2 | ||||||
| P T | 1 | ||||||
| Abbreviations: P: prednisone, C: cyclosporine, A: azathioprine, M: mycophenolate, S: sirolimus, T: tacrolimus | |||||||
| Table 3Effects of age, sex, duration of immunosuppressive therapy, regimens of immunosuppressive therapy on the occurrence of actinic keratoses (A) and squamous cell carcinomas (B). * p <0.05, statistically significant; ** p <0.01, highly significant; 1β: beta coefficient; 2SE: standard error; 3PE: point estimate; 495% Wald confidence limits | |||||||
| A | |||||||
| Clinical parameter | Odds ratio estimates | ||||||
| β1 | SE2 | PE3 | 95% Limits4 | P value | Significance | ||
| Age | 0.100 | 0.020 | 1.11 | 1.06 | 1.15 | <0.0001 | ** |
| Sex (male) | –0.824 | 0.218 | 0.19 | 0.08 | 0.45 | 0.0002 | ** |
| Duration of immunosuppressive therapy | 0.143 | 0.036 | 1.15 | 1.08 | 1.24 | <0.0001 | ** |
| Skin type | –1.184 | 0.396 | 0.31 | 0.14 | 0.66 | 0.0027 | ** |
| Immunosuppressive drugs: | |||||||
| Prednisone | 1.728 | 0.781 | 5.63 | 1.22 | 26.03 | 0.0270 | * |
| Cyclosporine | 0.471 | 0.691 | 1.60 | 0.41 | 6.20 | 0.4959 | |
| Azathioprine | –0.174 | 0.422 | 0.84 | 0.37 | 1.92 | 0.6803 | |
| Mycophenolate | –0.020 | 0.562 | 0.98 | 0.33 | 2.95 | 0.9712 | |
| Sirolimus | 0.352 | 1.379 | 1.42 | 0.10 | 21.20 | 0.7986 | |
| Tacrolimus | 1.975 | 1.228 | 7.20 | 0.65 | 79.98 | 0.1079 | |
| B | |||||||
| Clinical parameter | Odds ratio estimates | ||||||
| β1 | SE2 | PE3 | 95% Limits4 | P value | Significance | ||
| Age | 0.134 | 0.034 | 1.14 | 1.07 | 1.22 | <0.0001 | ** |
| Sex (male) | –0.702 | 0.329 | 0.25 | 0.07 | 0.89 | 0.0332 | ** |
| Duration of immunosuppressive therapy | 0.150 | 0.050 | 1.16 | 1.05 | 1.28 | 0.0025 | ** |
| Skin type | –2.189 | 0.787 | 0.11 | 0.02 | 0.52 | 0.0054 | ** |
| Immunosuppressive drugs: | |||||||
| Prednisone | 1.101 | 1.167 | 3.01 | 0.31 | 29.61 | 0.3452 | |
| Cyclosporine | 0.707 | 0.947 | 2.03 | 0.32 | 12.98 | 0.4557 | |
| Azathioprine | 0.600 | 0.653 | 1.82 | 0.51 | 6.56 | 0.3589 | |
| Mycophenolate | –0.192 | 1.184 | 0.83 | 0.08 | 8.38 | 0.8713 | |
| Sirolimus | –10.94 | 436.0 | <0.001 | <0.001 | >999 | 0.9800 | |
| Tacrolimus | –10.51 | 553.1 | <0.001 | <0.001 | >999 | 0.9848 | |
Azathioprine was reported to have a main impact on skin tumour development [11]. We therefore investigated whether the substances used for immunosuppression had any effect on the development of AKs and skin cancers. The type of immunosuppression did not affect the development of AK and SCC. Only for prednisone (p = 0.027) was a statistically significant risk of developing AK shown. We could not identify azathioprine as high risk treatment for the development of AK or NMSC.
This study investigates the frequency and type of skin cancer in renal transplant patients detected by a dermatologist for the first time after transplantation. All patients had a dermatological checkup before transplantation. No skin cancers were detected at this initial visit. The incidence of 17.8% for NMSC (SCC and BCC) within the first 10 years of immunosuppression is consistent with data from previous studies [14–17, 20].
In the normal population the incidence in Switzerland is some 23/100 000 for SCC and some 71/100 000 for BCC [24] resulting in 94 NMSC per 100 000 inhabitants. In our study only 243 patients developed 158 NMSC. Although this is a several-fold increase in incidence, we cannot rule out the possibility that at least some NMSC are not related to the immunosuppression.
Over time, most renal transplant patients developed actinic keratoses. Over 70% of the patients transplanted more than 20 years ago presented AKs. Although the number of these patients was small, this observation demonstrates the high risk of developing AKs and later SCC, since in renal transplant patients a high incidence of SCC has been demonstrated. In contrast to the general population, renal transplant patients present more SCC than BCC, i.e., the ratio of SCC to BCC in these recipients is reversed compared to the general population [25, 26]. In our patients we found a BCC to SCC ratio of 1:7, which is comparable to that reported in other studies [5] and the reverse of the ratio seen in the general population where BCCs are more frequent than SCCs [24]. Interestingly, the increase in SCC was much more rapid than the increase in BCC, as has been observed earlier [27]. As a consequence of these observations, renal transplant patients should undergo regular follow-up including skin examination. We would propose a dermatological checkup annually or every 3–6 months in patients with previous AKs and/or skin cancer.
In accordance with published data [28] the results of this study clearly demonstrate that the main reason for the increasing number of AKs and NMSC after transplantation is immunosuppressive therapy, which is imperative for these patients. The duration of immunosuppression correlates highly significantly with the numbers of patients affected by NMSC. In addition, elderly patients, men, and patients with a fair skin were found to be at higher risk of developing AKs and SCCs. The large relative and absolute number of patients with SCC suggests that immunosuppressive therapy promotes the development of AKs and SCCs. Precancerous lesions such as AKs tend to develop into SCC more often and more rapidly in renal transplant patients. Although our data suggest that the risk factors fair skin type, age, long-standing immunosuppressive therapy and male gender are associated with the development of skin cancer, they may not prove it. Nevertheless, it seems important to detect AKs at an early stage and to treat them. If AK and NMSC are diagnosed at an early stage, various minimal or non-invasive methods such as cryotherapy, photodynamic therapy and topical imiquimod or 5-fluorouracil can be used.
It has recently been demontrated in vitro that azathioprine induces chronic oxidative stress by forming reactive oxygen species (ROS) causing mutagenic damage of the DNA [11]. This observation may be one explanation for the increased prevalence of skin cancer in long-term survivors after organ transplantation. Although azathioprine has been shown to induce mutagenic oxidative DNA damage with UVA light [11], we could not identify azathioprine or any other specific immunosuppressive drug as a distinct risk factor for the development of AK or NMSC. Surprisingly, there was a small but significant increase in the risk of developing AK in patients treated with prednisone. This finding may be explained by the fact that prednisone is frequently given to patients with a higher load of immunosuppression, as for example to patients with poor graft function.
We also recorded a slightly higher incidence of AK development under the calcineurin inhibitor tacrolimus. Although the immunosuppression drug sirolimus, a mammalian target-of-rapamycin inhibitor (mTOR), has been reported to be associated with a lower incidence of de novo skin cancer [29], we could not demonstrate this effect. However, it has to be emphasised that the numbers in both the tacrolimus and sirolimus groups were too low to allow statistically significant statements.
The main limitation of this study is that we analysed a relatively small number of patients and that there is no matched control population. Furthermore, the study population was selected, as only patients seen at our hospital were included. The results may be influenced by centre-effects and may, therefore, not be applicable to other populations. Further studies are required to assess the exact relationship between immunosuppressive drugs and the development of skin cancer.
Because of the high risk of developing skin cancer there is a need to develop effective programmes for prevention, early detection, and therapeutic intervention. Guidelines for the follow-up of these patients have recently been published [30].
1 Stockfleth E, Ulrich C, Meyer T. Skin diseases following organ transplantation – risk factors and new therapeutic procedures. Transplant Proc. 2001;33:1848–53.
2 Berg D, Outley C. Skin cancer in organ transplant recipients: epidemiology, pathogenesis, and management. J Am Acad Dermatol. 2002;47:1–17.
3 Knoll G. Trends in kidney transplantation over the past decade. Drugs. 2008;68(Suppl 1):3–10.
4 Takemoto SK, Terasaki PI, Gjertson DW, Cecka JM. Twelve years’ experience with national sharing of HLA-matched cadaveric kidney for transplantation. N Engl J Med. 2000;343:1078–84.
5 Bouwes-Bavinck JN, Hardie DR, Green A, Cutmore S, Mac-Naught A, O’Sullivan B, et al. The risk of skin cancer in renal transplant recipients in Queensland, Australia. A follow-up study. Transplantation. 1996;61:715–21.
6 Euvrard S, Chardonnet Y, Pouteil-Noble C, et al. Association of skin malignancies with virous and multiple carcinogenic and non carcinogenic human papillomaviruses in renal transplant recipients. Cancer. 1993;72:2198–206.
7 Casabonne D, Lally A, Mitchell L, Michael KM, Waterboer T, Pawlita M, et al. A case-control study of cutaneous squamous cell carcinoma among Caucasian organ transplant recipients: the role of antibodies against human papillomavirus and other risk factors. Int J Cancer. 2009;125(8):1935–45.
8 Kelly GE, Meikle W, Sheil AG. Effects of immunosuppressive therapy in the induction of skin tumors by ultraviolet irradiation in hairless mice. Transplantation. 1987;44:429–34.
9 Servilla KS, Burnham DK, Daynes RA. Ability of cyclosporine to promote the growth of transplanted ultraviolet radiation-induced tumors in mice. Transplantation. 1987;44:291–5.
10 Boyle J, MacKie RM, Briggs JD, Junor BJ, Aitchison TC. Cancer, warts, and sunshine in renal transplant patients. A case-control study. Lancet. 1984;1:702–5.
11 O’Donovan P, Perett CM, Xlaohong Z, Karran P, et al. Azathioprine and UVA light generate mutagenic oxidative DNA damage. Science. 2005;309:1871–74.
12 Sheil AG. Development of malignancy following renal transplantation in Australia and New Zealand. Transplant Proc. 1992;24:1275–9.
13 Ong CS, Keogh AM, Kossard S, Macdonald PS, Spratt PM. Skin cancer in Australian heart transplant recipients. J Am Acad Dermatol. 1999;40:27–34.
14 Moloney FJ, Comber H, O’Lorcain P, O’Kelly P, Conlon PJ, Murphy GM. A population-based study of skin cancer incidence and prevalence in renal transplant recipients. Br J Dermatol. 2006;154(3):498–504.
15 Hartevelt MM, Bacinck JN, Kootte AM, Vermeer BJ, Vandenbroucke JP. Incidence of skin cancer after renal transplantation in the Netherlands. Transplantation. 1990;49:506–9.
16 Naldi L, Fortina AB, Lovati S, Barba A, Gootti E, Tessari G, et al. Risk of nonmelanoma skin cancer in Italian organ transplant recipients. A registry-based study. Transplantation. 2000;70:1479–84.
17 London NJ, Farmery SM, Will EJ, Davison AM, Lodge JP. Risk of neoplasia in renal transplant patients. Lancet. 1995;346:403–6.
18 Marubayashi S, Tashiro H, Watanabe H, Fubada Y, Hayamizu K, Ohdan H, et al. Study on eight patients with malignant tumors after renal transplantation. Hiroshima J Med Sci. 2000;49:117–20.
19 Kishikawa H, Ichikawa Y, Yazawa K, Hanafusa T, Fukunishi T, Ebisui C, et al. Malignant neoplasm in kidney transplantation. Int J Urol. 1998;5:521–5.
20 Jensen P, Hansen S, Moller B, Leivestad T, Pfefer P, Geiran O, et al. Skin cancer in kidney and heart transplant recipients and different long-term immunosuppressive therapy regimens. J Am Acad Dermatol. 1999;40:177–86.
21 Penn I. Post-transplant malignancy: the role of immunosuppression. Drug Saf. 2000;23:101–13.
22 Penn I. Cancers in renal transplant recipients: Adv Ren Replace Ther. 2000;7:147–56.
23 Hojo M, Morimoto T, Maluccio M, Asano T, Morimoto K, Lagman M, et al. Cyclosporine induces cancer progression by a cell-autonomous mechanism: Nature. 1999;397:530–4.
24 Bulliard JL, Panizzon RG, Levi F. Epidemiology of epithelial skin cancers. Rev Med Suisse. 2009;5(200):882,884–8.
25 Hardie I, Strong R, Hartley L, Woodruff P, Clunie C. Skin cancer in caucasian renal allograft recipients living in a subtropical climate. Surgery. 1980;87:177.
26 Gupta A, Cardella C, Haberman H. Cutaneous malignant neoplasms in patients with renal transplants. Arch Dermatol. 1986;122:1288.
27 Webb MC, Comptom F, Andrews PA, Koffman CG. Skin tumours posttransplantation: a retrospective analysis of 28 years’ experience at a single centre. Transplant Proc. 1997;29:823–30.
28 Ulrich C, Jürgensen JS, Degen A, Hackethal M, Ulrich M, Patel MJ, et al. Prevention of non-melanoma skin cancer in organ transplant patients by regular use of a sunscreen: a 24 months, prospective, case-control study. Br J Dermatol. 2009;161(Suppl 3):78–84.
29 Vasudev B, Hariharan S. Cancer after renal transplantation. Curr Opin Nephrol Hypertens. 2007;16(6):523–8.
30 Hofbauer GF, Anliker M, Arnold A, Binet I, Hunger R, Kempf W, et al.; SGDV working group for organ transplant recipients. Swiss clinical practice guidelines for skin cancer in organ transplant recipients. Swiss Med Wkly. 2009;139(29-30):407–15.
No external funding. No competing interests.
